PLC Thermocouple Input Module 4 Line Thermol Resistor Analog Input Cortex™-M3 CPU

Product Categories
Shanghai Flexem Technology Co.,Ltd
Contact Now

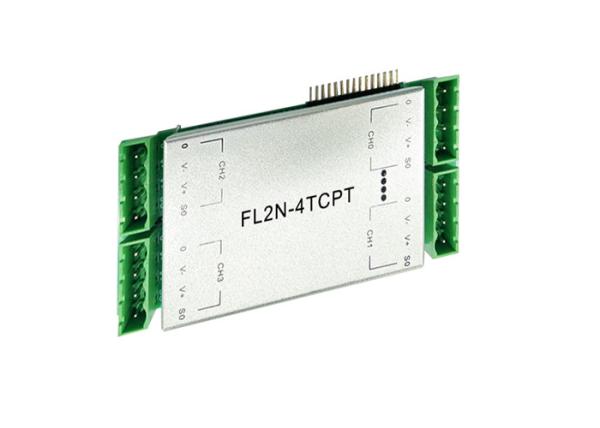

PLC Thermocouple Input Module 4 Line Thermol Resistor Analog Input Cortex™-M3 CPU

  • 1
  • 2

Brand Name : FLEXEM

Model Number : FL2N-4TCPT-B

Certification : CE

Place of Origin : Shenzhen

MOQ : 1pc

Price : Negotiation

Payment Terms : T/T

Supply Ability : 5000 pcs/week

Delivery Time : 1-7 business days after payment confirmed

Packaging Details : Carton

CPU : ARM 32-bit Cortex-M3 CPU

Analog Input : 4 line thermol resistor or thermocouple Thermocouple:(B,C,E,J,,K,N,R,S,Tmodel) Thermol resistor: (PT100,PT1000,Cu50,Cu100)NTC

User Program Memory : 200k bytes(>10k Bytes)

Communication Protocol : RS232*1,RS485*1 Supporting Mitshubish FX2N and Modbus RTU communication

Power Consumption : 4W

Input Power : DC 24C,Input Range:DC 18V~32V

Contact Now


Description:

* CPU:ARM Cortex™-M3 CPU.


* Analog Input:4 line thermol resistor or thermocouple Thermocouple: (B,C,E,J,K,N,R,S,T model) Thermol

resistor: (PT100, PT1000,Cu50, Cu100) NTC.


Specification:

Input Power DC 24V,Input Range:DC 18V～32V
Power Consumption 4W
Power Protection Isolated Power,protected from thunderstrike and surging
Power Down Allowed < 5mS
Analog Input 4 line thermol resistor or thermocouple Thermocouple: (B,C,E,J,K,N,R,S,T model) Thermol resistor: (PT100, PT1000,Cu50, Cu100) NTC
User Program Memory 200K Bytes(>10K Bytes)

PORT1/PORT2
Pin1 Rx-(B) (PORT2 RS485) PLC Thermocouple Input Module 4 Line Thermol Resistor Analog Input Cortex™-M3 CPU
Pin2 RxD (PORT1 RS232)
Pin3 TxD (PORT1 RS232)
Pin4 NA
Pin5 GND
Pin6 Rx+(A) (PORT2 RS485)
Pin7 NA
Pin8 NA
Pin9 NA

What We Do:

FLEXEM is committed to offering you customized integrated solutions, optimal design and most suitable quality products to meet your detailed requirements.

FLEXEM endeavors in saving your developing time, minimizing your operation costs to enable you to focus on your core-competitiveness.

FLEXEM is dedicated to providing you with easy-to-use hardware platform and developing platform. With professional design and friendly interface, FLEXEM is devoted to inspiring your creativity and maximizing your efficiency and productivity.

FLEXEM helps you simplify the complex procedures wholeheartedly.
